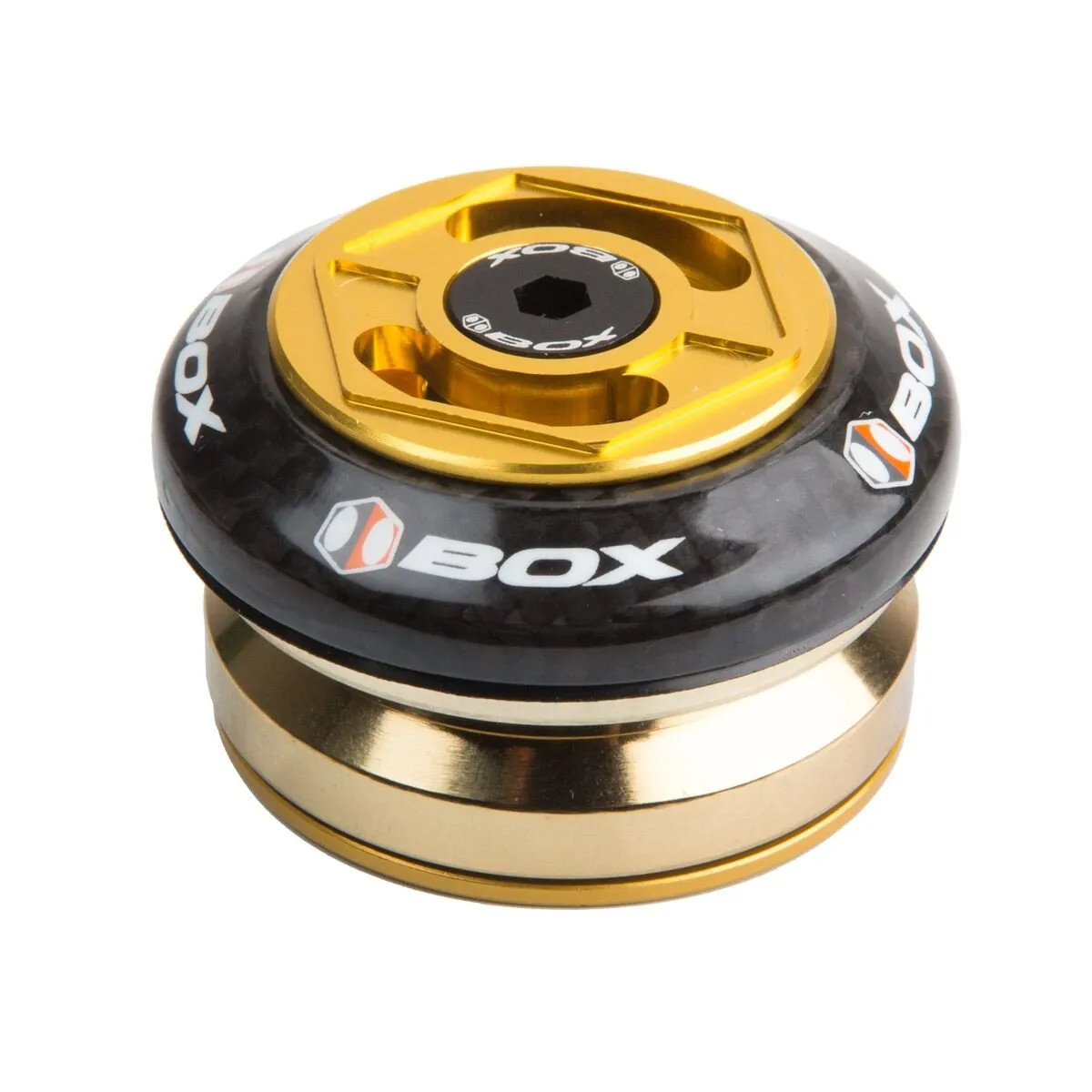

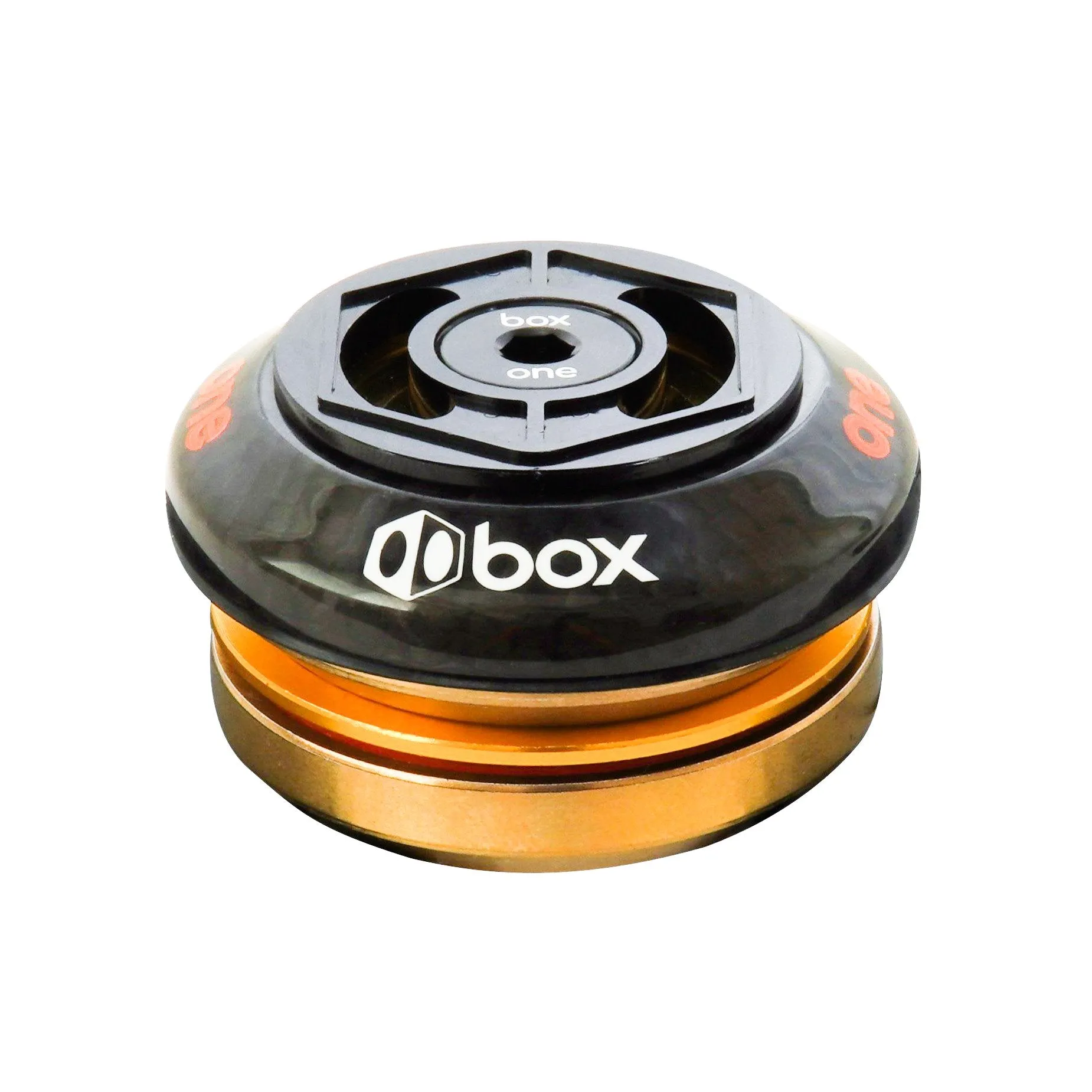

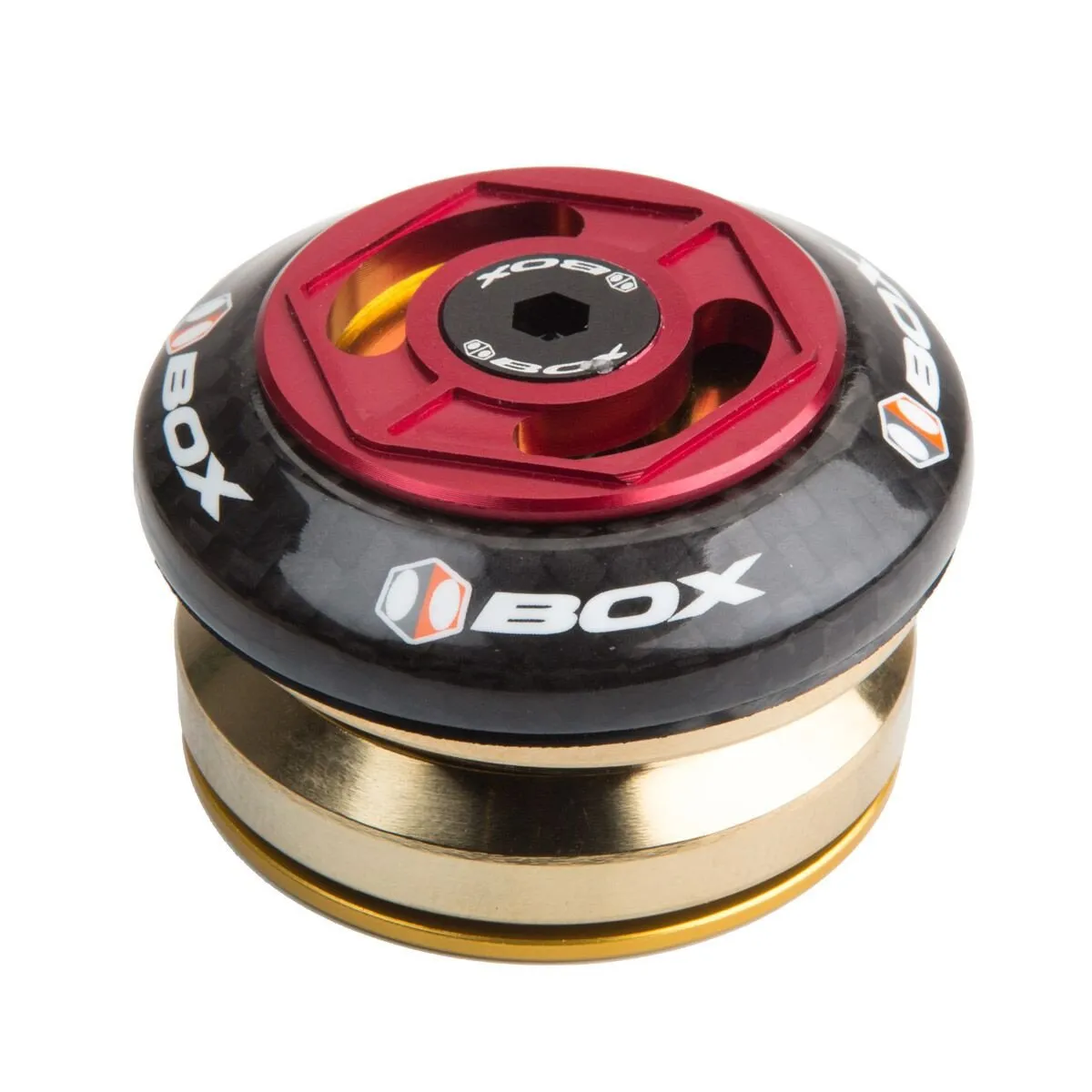

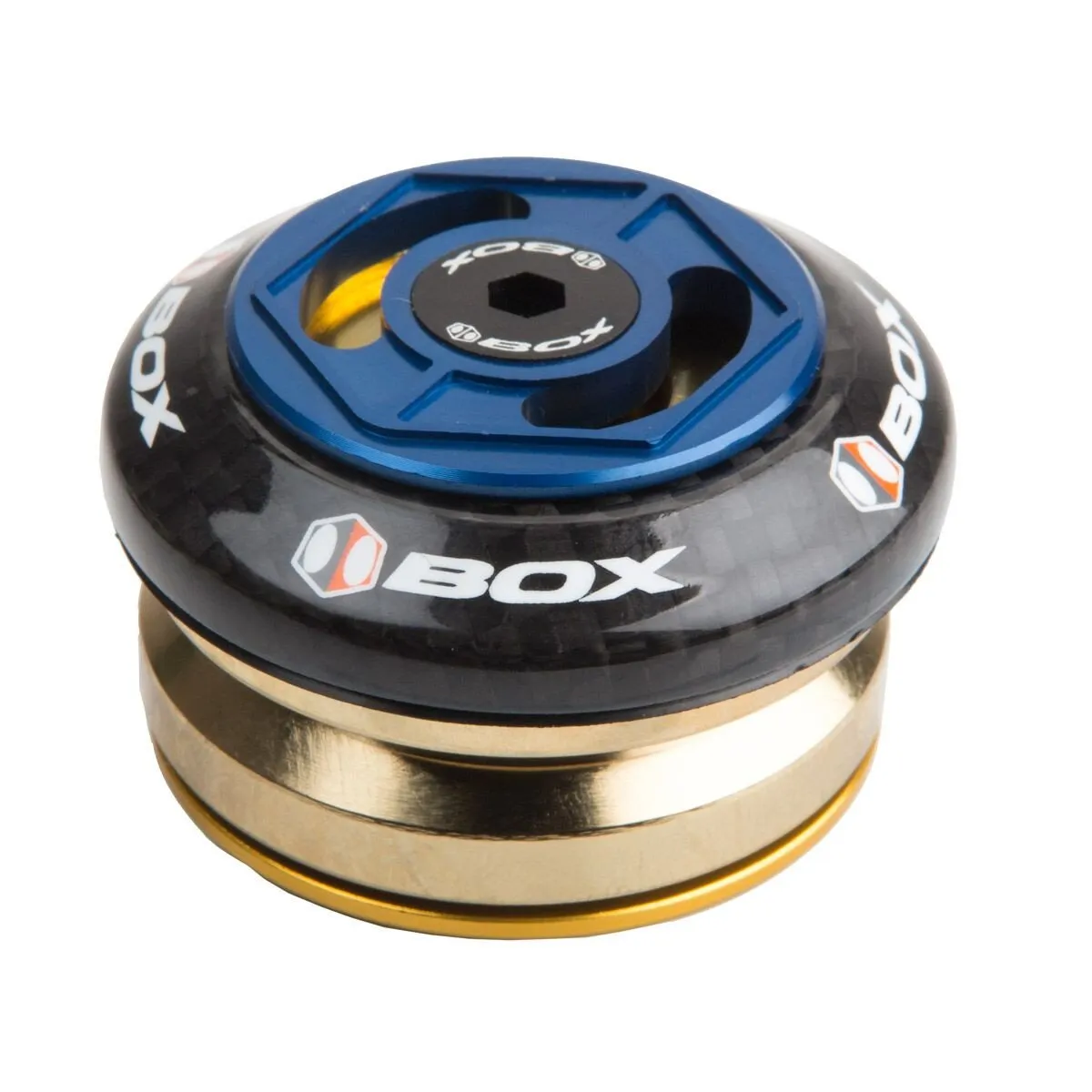

From top to bottom, the Box One™ Carbon Headset is designed to perform. Each unit features a custom CNC-machined aluminum compression cap in the shape of the Box logo with cut-outs to reduce weight. At the center of the compression cap is an anodized aluminum bolt that threads into a gold anodized aluminum expander plug. This expander eliminates the need for a star nut and works with all 1-1/8-inch steerer tubes—even carbon fiber steerer tubes.
The bearing cover is crafted from carbon fiber, which not only adds style but helps shave weight.
At the heart of the headset are two super-smooth, titanium-nitride coated, sealed, 45×45 bearings. The titanium coating results in a low friction coefficient, increased corrosion resistance, and smoother rolling bearings.

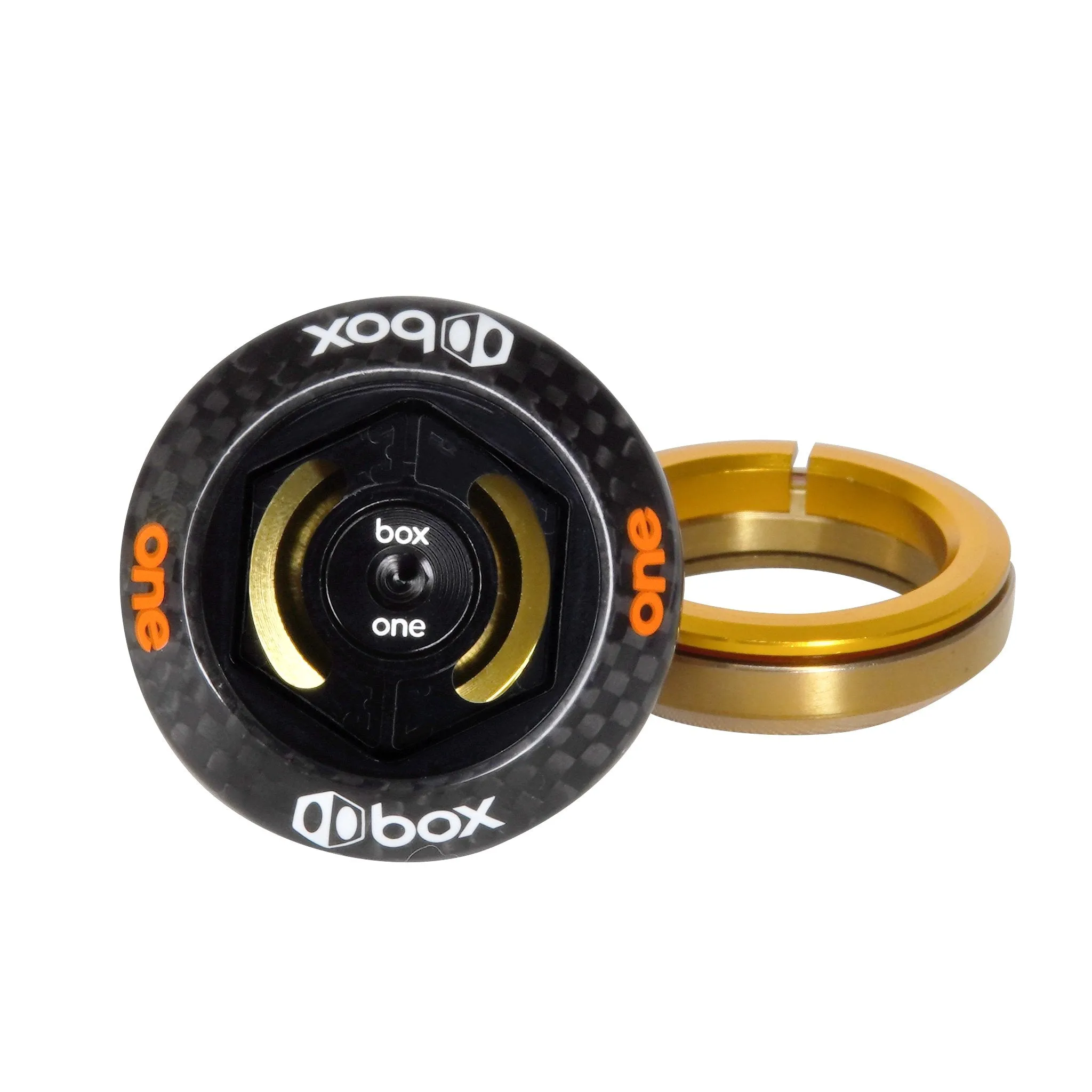

A split crown race makes installation and removal from forks super easy.
- Carbon Fiber Bearing Cover
- Lightweight Compression Cap
- Titanium-Nitride Coated Sealed Bearings
- Aluminum Expansion Plug
| Bearing Angle | 45° x 45° |
| Material | Aluminum, Carbon-Fiber |
| Recommended Torque | 9-10 Nm (Expander), 1.5 Nm (Compression Cap) |
| SHIS | IS 42/28.6 | IS 42/28.6 |
| Weight | 94 grams / 3.3 ounces |
COMPATIBILITY
- Box One X2 Fork
- Box One XL Fork
- Frames with an Integrated NON-Tapered Head Tube
